Why the acid leaching tank is important?

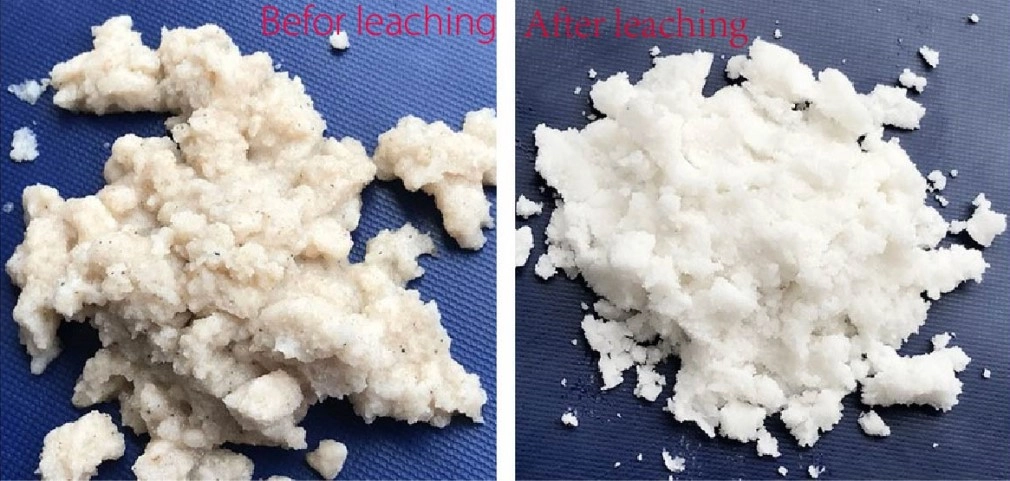

In silica sand production line, If you want to reduce the Fe2o3 more efficiently, the acid leaching method is necessary, using acid leaching tank can reach the aim to obtain low Fe2O3 silica sand, and let the silica sand color change from yellow to be white.

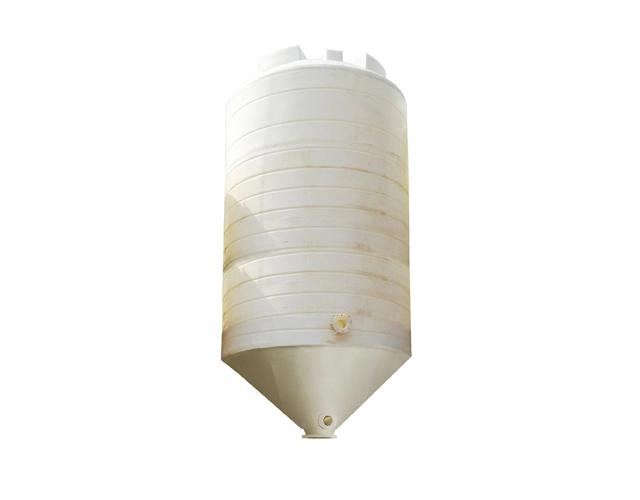

Features of acid leaching tank
1.The structure and shape are diverse. According to the different production process and capacity, the optional acid leaching tank specifications are of 30-150 tons of capacity, and there are three kinds of tank bottom structure, inner cone, outer cone and oblique cone, to meet the requirements of different processes and sites.
2.The main tank body is made of winding integrated PPH material, which can withstand high temperature up to 100 degrees Celsius, and can meet various grade and quality of quartz sand acid leaching.
3.PPH material acid leaching tank has good thermal insulation properties, thickness 50-90mm, has good thermal insulation effect, so acid leaching reaction speed is fast, which can save heating costs.
4.Acid leaching, acid removal, cleaning processes are completed in the acid leaching tank, reducing equipment investment and floor space.
5.Adopt dynamic acid leaching reaction technology, reduce the volatilization of acid, speed up the acid leaching reaction, high efficiency and environmental protection.
How the acid leaching tank work in silca sand production line?
The raw sand is fed into the acid leaching tank through the conveying device, and then the heated acid solution is evenly fed into the acid leaching tank. After 6-8 hours of reaction in the sealed acid leaching tank, the acid solution is discharged from tho bottom of the acid leaching tank. Then, clean water is pumped into the leaching tank to was the residual acid in the quartz sand, and then the quartz sand is discharged from the discharge port at bottom of tank. The acid leaching process is completed.
How to select suitable acid leaching for your sand washing plant?
Before select the acid leaching tank, you need to know how many hours the sand needed in acid leaching, the acid leaching tank can work 24hours, the volume of one acid leaching tank is 50 ton, 100 ton, and 150ton etc, usually you need select several sets acid tanks for one sand washing plant to reach the total capacity. If you have any doubt about it , please contact us, then we can prepare suitable proposal for you according to your material and final requirement of the concentrate sand.

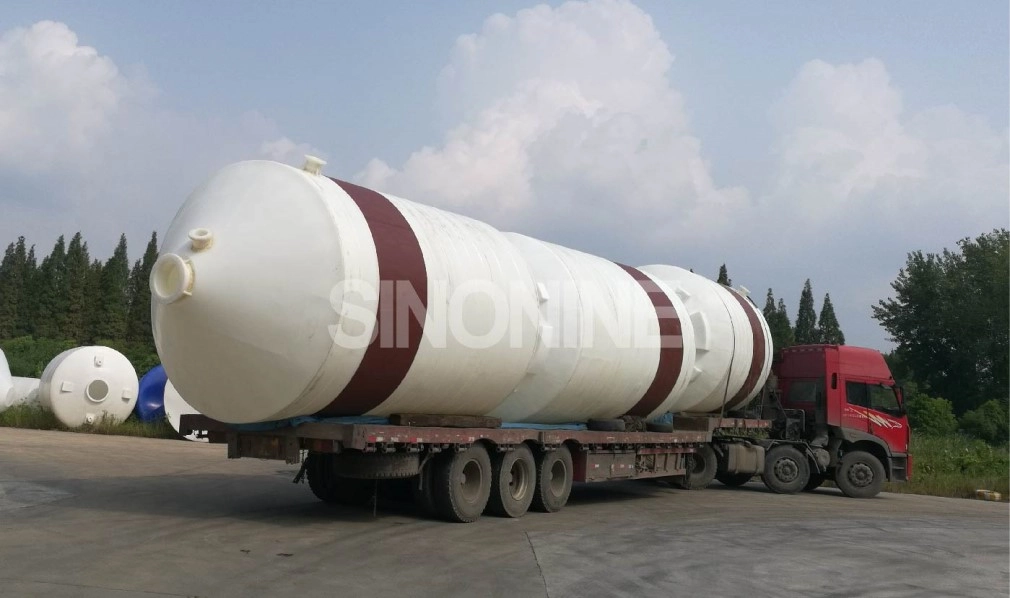

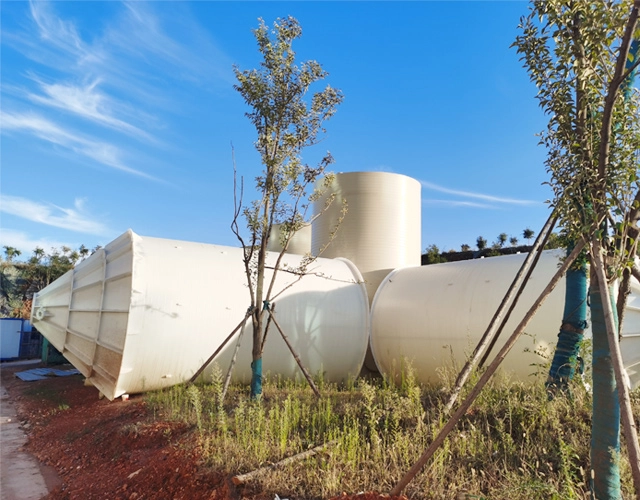

Delivery acid leaching tank
The main material of acid leaching tank is PPH, though the material is hard enough in silica sand production line , we also need pay attention to take care it when delivery. The dimension of the acid leaching tank is big, usually can be not loaded to common container, the FR flat container or bulk shipment are necessary. We can adopt best delivery method for the acid leaching tank, let the goods reach the project site safely.
