Features of attrition scrubber
1.The attrition scrubber has small power consumption, strong intensity of scrubbing and stirring, favorable effectiveness.

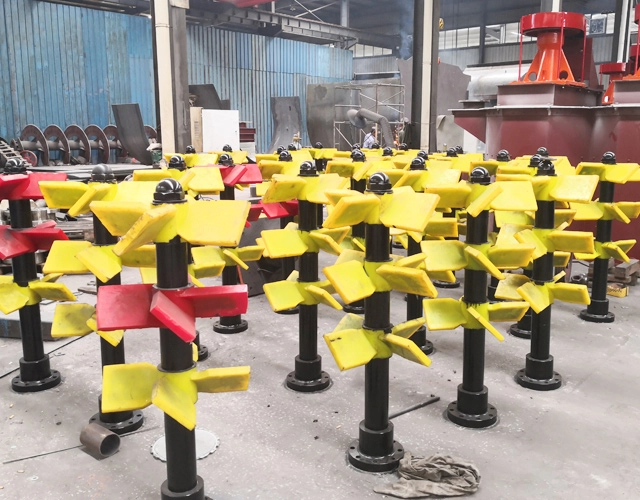

2.The impeller of attrition scrubber is above the slurry settling area, easy to start and low power to start.
3.The impeller of attrition scrubber is in low circumferential speed and long service life.
4.The structure of attrition scrubber is simple.
5.The attrition scrubber has large effective volume and small installation space.
Working principle of attrition scrubber
The motor drives the main shaft of attrition scrubber to rotate through the belt pulley, causing negative pressure area on the impeller. When the material passes through , it is stirred and rinsed thoroughly, and then pushed out by the impeller and flows along the wall of the attrition scrubber tanks. As the material is continuously fed into the attrition scrubber, the cleaned material is constantly discharged from the discharge port to finish the scrubbing work. The ore pulp particles generate enormous momentum and cause violent friction and collision with each other. The impurity film wrapped on the surface of particles is easy to be separated from the ore surface by friction and impact. The adglutinate on the ore surface is soaked by water and then through the intense friction and collision between the ore particles, the adglutinate will also be loose and broken down, so as to achieve the separation of clay and ore particles. These film impurities and clay are broken down and flaked into the slurry, which can be separated after subsequent desliming.
Specification of attrition scrubber
Model | Single volume (m³) | Cell quantity | Input size(mm) | Pulp density | Power (kw) | Weight | Dimension (L×W×H) (mm) |
AS0.5-2 | 0.5 | 2 | 0-5 | <70% | 7.5x2 | 1100 | 1340×920×1350 |
AS1-2 | 1 | 2 | 0-5 | <70% | 15x2 | 2400 | 2774x1510x2057 |
AS2-2 | 2 | 2 | 0-5 | <70% | 37x2 | 4800 | 3012x1597x2997 |
AS4-2 | 4 | 2 | 0-5 | <70% | 75x2 | 9600 | 3536x1852x5395 |

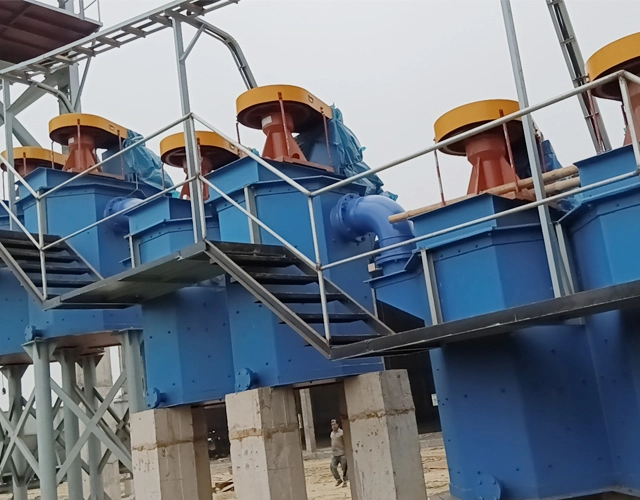

Case 1：Columbia 4sets of AS2-2 attrition scrubber
The customer purchased four sets of AS2-2 attrition scrubber for producing quartz sand, scrubbing the impurities on the surface of quartz sand, and then be ready to the next step of mineral processing.
Case 2：Guyana 2sets of AS2-2 attrition scrubber
The customer purchased two sets of AS2-2 attrition scrubber at one time for local distribution, and won a good reputation in the local market and made a substantial profit.
I had extensive contact with Sinonine, visited its production base and equipment application, communicated with Sinonine's technical team for many times, and finally decided to cooperate with Sinonine. I am a local mining equipment dealer, need to constantly improve my product lines to meet the needs of different customers. Sinonine quartz sand production equipment is very suitable for me. They recommended me several types of equipment suitable for local use, provided perfect technical support, and at the same time gave me a lot of space in the price, which saved me a lot of trouble in the process of distributing equipment and made me a huge profit. Sinonine is a trusted company.
