Features of conditioning tank
1.Conditioning tank has small power consumption, big stirring intensity and good blending effect.
2.The impeller of conditioning tank is above the ore pulp sedimentation zone, which is light for starting, so the conditioning tank has a small starting power in order to relieve operators’ labor intensity in a large extend.
3.The conditioning tank has simple structure and large effective volume.
4. The conditioning tank has low blade cycle speed and long service life.
5.For the conditioning tank, the relevant location between feeding, discharge and the electrical machine can be arranged differently according to users’ requirements.
Working principle of conditioning tank
When the impeller of conditioning tank moves in the clockwise direction (seeing from the top to down), one zone of negative pressure generates underneath the blade. The ore pulp, medicament and air which are delivered by the feeding pipe are simultaneously absorbed and move downward, they are blended fully by the impeller and then are pushed outside by the blade, which flows upward along with the external wall of cycling pump. Since new ore pulp is fed into conditioning tank in constantly, and the qualified ore pulp through stirring and mixing comes out from the discharge of conditioning tank constantly, and the stirring and mixing operation is done.
Specification of conditioning tank
Model | Internal diameter (mm) | Internal Height (mm) | Volume (m3) | Power (kw) | Dimension (LxWxH) (mm) | Weight (t) |
XB500 | 500 | 500 | 0.1 | 1.1 | 600×570×960 | 0.25 |
XB750 | 750 | 750 | 0.33 | 1.5 | 1140×880×1250 | 0.5 |
XB1000 | 1000 | 1000 | 0.79 | 1.5-2.2 | 1300×1130×1600 | 0.8 |
XB1200 | 1200 | 1200 | 1.4 | 3-4 | 1750×1480×1930 | 1.1 |
XB1500 | 1500 | 1500 | 2.7 | 5.5-7.5 | 2150×1640×2350 | 1.2 |
XB2000 | 2000 | 2000 | 6.3 | 5.5-7.5 | 2650×2200×2850 | 1.6 |
XB2500 | 2500 | 2500 | 12 | 11-15 | 2860×2600×3680 | 3.5 |
XB3000 | 3000 | 3000 | 21 | 18.5-22 | 3610×3220×4250 | 4.6 |
XB3500 | 3500 | 3500 | 34 | 22-30 | 3940×3770×5090 | 7.3 |
XB4000 | 4000 | 4000 | 50 | 30-37 | 4530×3360×5300 | 10 |

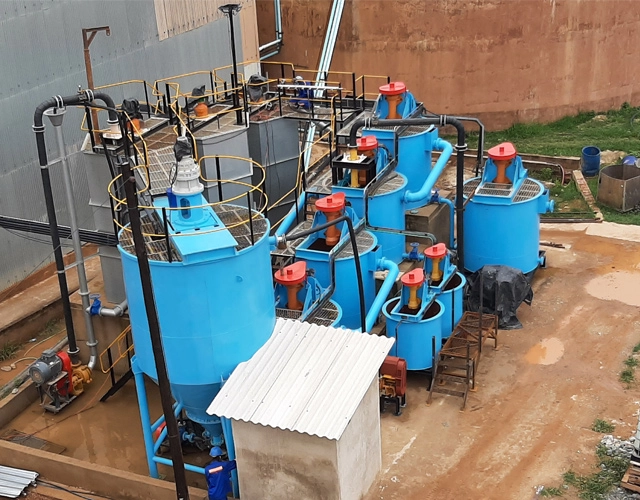

Case 1：Burundi conditioning tanks
The customer purchased two XB2000 conditioning tanks for the mixing operation of the quartz sand flotation system. After fully mixing the slurry and the flotation agent, the sand slurry enters the flotation machine to further purify the quartz sand.
Case 2：China Huangshan conditioning tanks
In order to fully stir the sand slurry and reagent, the project employs 3 conditioning tanks to continuously stir the sand slurry, so as to prepare the operating conditions for the flotation machine and achieve the ideal mixing effect. In this way, the reagent and the slurry can be fully mixed to ensure the smooth follow-up flotation operation.
The slurry conditioning tank produced by Sinonine is the right choice for me. Although it is an auxiliary equipment, it plays a key role in the production process. From the perspective of production practice, these conditioning tanks provided by Sinonine can fully mix the chemical and ore slurry, especially for the production of high-purity quartz sand, which is very important and can play a decisive role in the next step of flotation, impurity removal and purification.
