Hydraulic cone crusher
HP series Hydraulic cone crusher integrated crushing speed, stroke and crushing chamber ideally, not only improving the capacity and quality, but also expanding the range of applications, from limestone to iron ore, roadbed stone to manufactured sand. HP series cone crusher shows the excellent crushing capacity in secondary crushing and fine crushing from rock with high hardness to conventional rock. HP series cone crusher is the latest generation hydraulic cone crusher based on our several years and several generations product experience on R&D, whose technology is reliable demonstrated by testing, integrating the advanced technology at home and aboard. HP series cone crusher is smarter and more humanized in structure, operation and maintenance etc.
Specification of hydraulic cone crusher
Model | Cavity Tape | Standard Type | Short Type | Power (kw) | Capacity (t/h) | ||
Feed Size (mm) | Min Discharging Size(mm) | Feed Size (mm) | Min Discharging Size(mm) | ||||
HP200 | Coarse | 185 | 19 | 76 | 10 | 132-200 | 90-250 |
Medium | 125 | 17 | 54 | 6 | |||
Fine | 95 | 13 | 23 | 6 | |||
Extra Fine | 10 | 5 | |||||
HP300 | Extra Coarse | 230 | 25 | 180-250 | 115-440 | ||
Coarse | 210 | 20 | 75 | 10 | |||
Medium | 150 | 15 | 50 | 8 | |||
Fine | 105 | 10 | 20 | 6 | |||
Extra Fine | 20 | 6 | |||||
HP400 | Extra Coarse | 295 | 30 | 280-355 | 140-630 | ||
Coarse | 250 | 25 | 90 | 10 | |||
Medium | 195 | 20 | 50 | 8 | |||
Fine | 110 | 14 | 40 | 6 | |||
Extra Fine | 30 | 6 | |||||
HP500 | Extra Coarse | 330 | 30 | 355-450 | 175-790 | ||
Coarse | 285 | 25 | 90 | 13 | |||
Medium | 200 | 20 | 55 | 10 | |||
Fine | 133 | 16 | 40 | 8 | |||
Extra Fine | 35 | 6 | |||||
HP800 | Extra Coarse | 353 | 32 | 550-630 | 260-1200 | ||
Coarse | 297 | 32 | 155 | 13 | |||
Medium | 267 | 25 | 92 | 10 | |||
Fine | 219 | 16 | 33 | 6 | |||

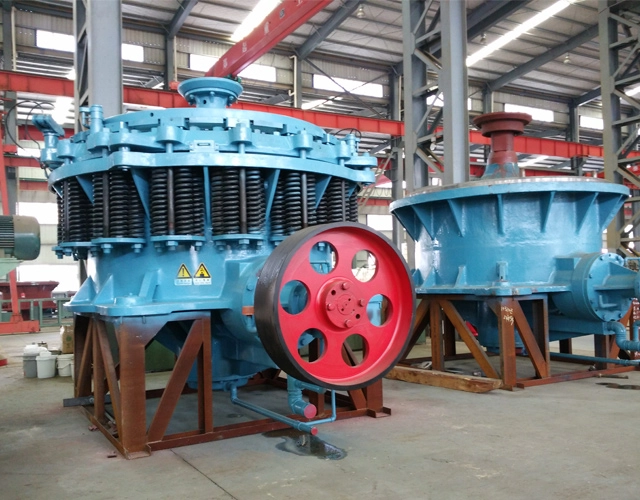

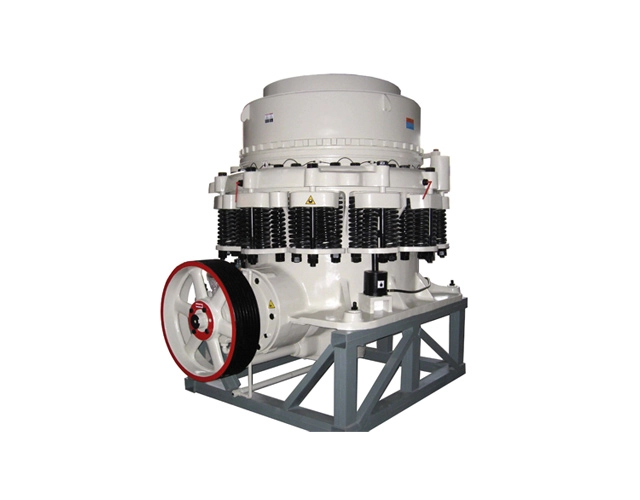

Spring cone crusher
Spring cone crusher is widely used in metallurgy, building, chemical industry and silicate industry. It’s suitable for kinds of ore and rocks which the compressive resistance is below 300Mpa, such as iron ore, copper ore, limestone, quartz, granite, sandstone etc.
Specification of spring cone crusher
Model | Diameter of crushing cone (mm) | Max. feed size (mm) | Discharged size (mm) | Capacity (t/h) | Power (kw) | Speed of eccentric shaft(r/min) | Weight (t) | Overall Dimension (L×W×H) (mm) |
PYB600 | Φ600 | 65 | 12-25 | 12-25 | 30 | 356 | 5 | 2800×1300×1700 |
PYD600 | Φ600 | 35 | 3-15 | 5-23 | 30 | 356 | 5.5 | 2800×1300×1700 |
PYB900 | Φ900 | 115 | 15-50 | 50-90 | 55 | 333 | 10.2 | 3050×1640×2350 |
PYZ900 | Φ900 | 60 | 5-20 | 20-65 | 55 | 333 | 10.2 | 3050×1640×2350 |
PYD900 | Φ900 | 40 | 3-13 | 15-50 | 55 | 333 | 10.3 | 3050×1640×2350 |
PYB1200 | Φ1200 | 145 | 20-50 | 110-200 | 110 | 300 | 24.7 | 4152×2300×2980 |
PYZ1200 | Φ1200 | 100 | 8-25 | 50-150 | 110 | 300 | 25 | 4152×2300×2980 |
PYD1200 | Φ1200 | 50 | 3-15 | 18-105 | 110 | 300 | 25.6 | 4152×2300×2980 |
PYB1750 | Φ1750 | 215 | 25-60 | 280-480 | 160 | 245 | 50.3 | 4870×3800×4192 |
PYZ1750 | Φ1750 | 185 | 10-30 | 115-320 | 160 | 245 | 50.3 | 4870×3800×4192 |
PYD1750 | Φ1750 | 85 | 5-15 | 75-230 | 160 | 245 | 50.4 | 4870×3800×4192 |
PYB2200 | Φ2200 | 300 | 30-60 | 590-1000 | 260-280 | 220 | 80 | 7705×3430×4852 |
PYZ2200 | Φ2200 | 230 | 10-30 | 200-580 | 260-280 | 220 | 80 | 7705×3430×4852 |
PYD2200 | Φ2200 | 100 | 5-15 | 120-340 | 260-280 | 220 | 81.4 | 7705×3430×4852 |
