Features of desliming cone
1.The desliming cone has no power consumption.
2.The desliming cone is simple structure and convenient operation.
3.The desliming cone has high efficiency of classifying and dewatering.
4.The area occupied of the desliming cone is small
5. The desliming cone has long settling route, good desliming and classifying effect.
Specification of desliming cone
Mode | Φ1000 | Φ1500 | Φ2000 | Φ2500 | Φ3000 | Φ6000 | Φ8000 | Φ10000 | |
Cone diameter (mm) | 1000 | 1500 | 2000 | 2500 | 3000 | 6000 | 8000 | 10000 | |
Sedimentation area (m2) | 0.75 | 2.0 | 3.0 | 4.9 | 7.0 | 15 | 32 | 59 | |
Volume (m3) | 0.27 | 0.83 | 2.27 | 4.0 | 7.0 | 15 | 28 | 60 | |
Diameter of discharge pipe(mm) | 25 | 40 | 50 | 60 | 70 | 80 | 100 | 150 | |
Ore discharge concentration (%) | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | |
Feeding pipe diameter (mm) | 120 | 150 | 150 | 150 | 150 | 150 | 159 | 215 | |
Desliming efficiency (%) | 33-45 | 33-45 | 33-45 | 33-45 | 33-45 | 33-45 | 33-45 | 33-45 | |
Weight (kg) | 1500 | 1980 | 2480 | 3850 | 4600 | 6340 | 8480 | 10330 | |
Capacity (t/h) | 0-1.5mm | 1.5-1.6 | 4-4.3 | 6-6.5 | 9.8-10.6 | 14-15 | 30-32 | 64-69 | 118-128 |
0-0.074 | 0.15-0.2 | 0.8-1.0 | 0.6-0.75 | 1.0-1.3 | 1.4-1.75 | 3-3.8 | 6.4-8 | 12-15 | |

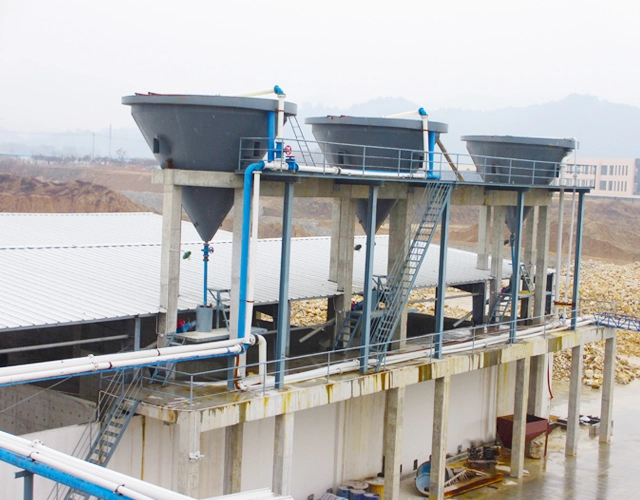

Case 1：Nigeria Φ3000 Desliming Cones
This project employs a series of Desliming Cones to complete Desliming and dewatering of quartz sand in two stages. The first stage is mainly used in Desliming and impurity removal, and the second stage is mainly used for dewatering.

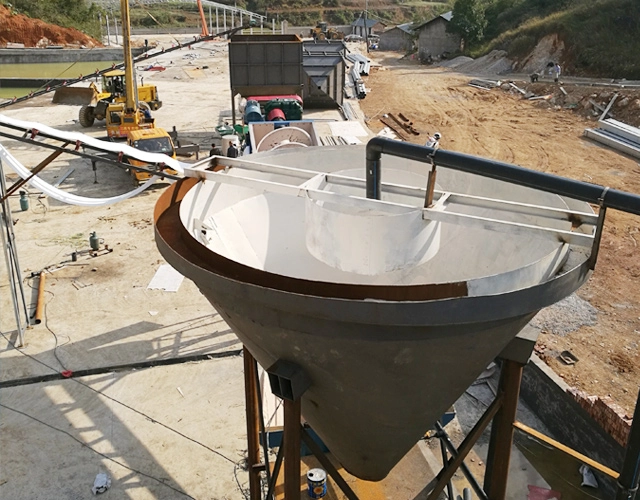

Case 2：India Φ4000 Desliming Cones
This customer let my company to fabricate a 4000 Desliming Φ Cone, used for the desliming of silica sand washing before classification, and desliming and removing impurity in advance, and prepare conditions for subsequent classification work in the quartz sand production line .

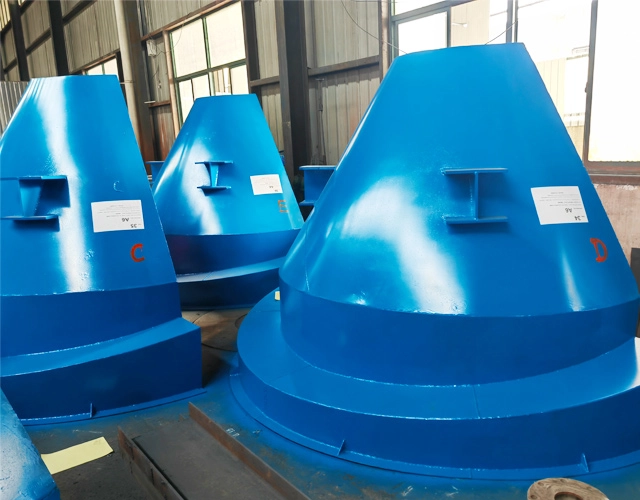

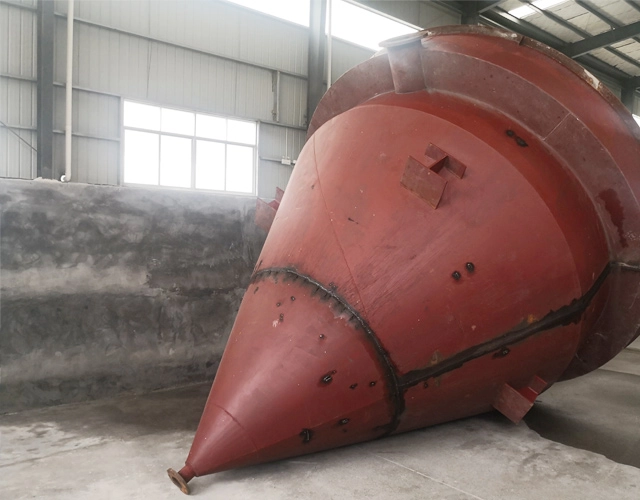

Sinonine can customize equipment according to customers' needs. For equipment like Desliming Cones, Sinonine has demonstrated its strong manufacturing capacity in non-standard devices. This equipment has simple structure, easy installation and no power demand. Sinonine can also provide a lot of this type of steel structure products,, such as dewatering silo, the product silo, chutes and other steel structure products, they can be well designed and easy to use.
