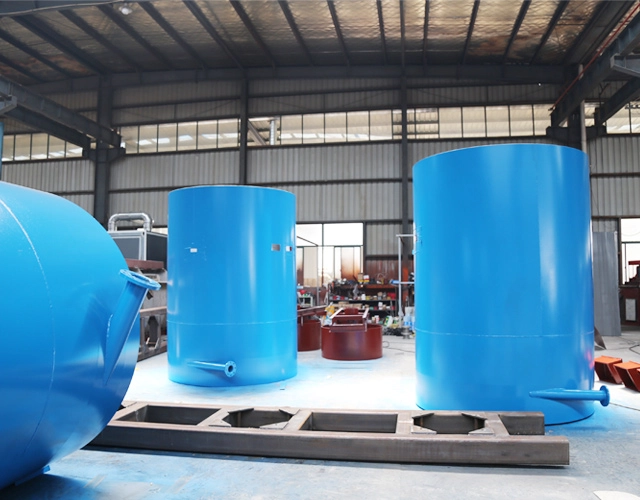

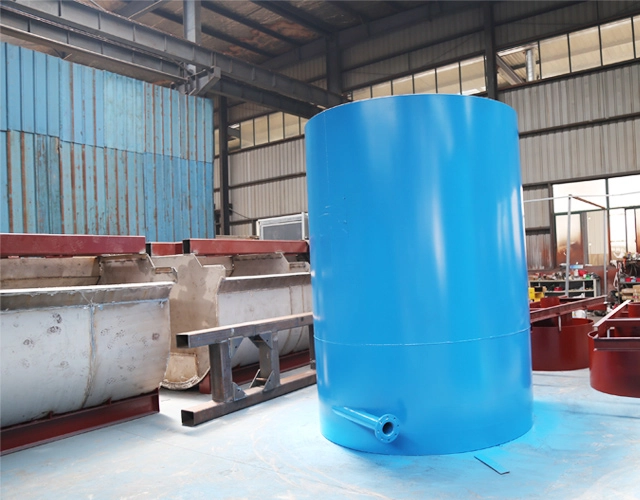

Hindered Settling Machine

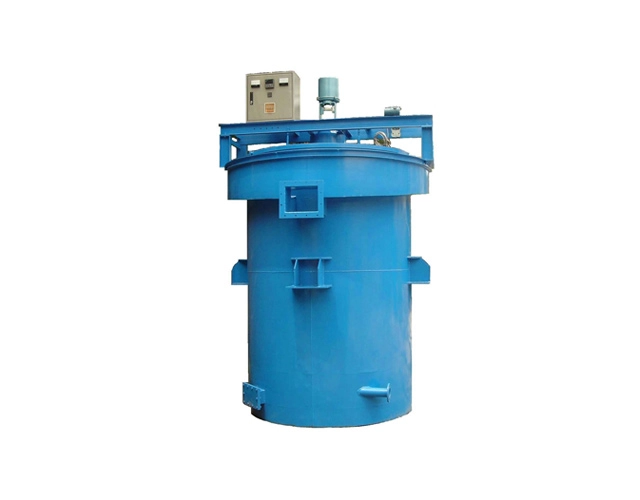

Features of hindered settling machine

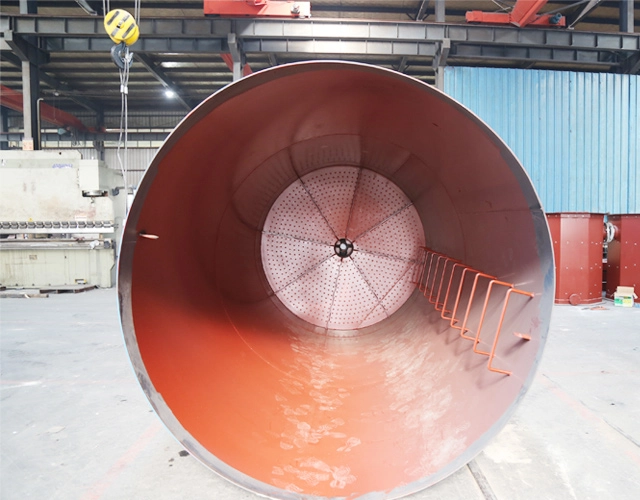

1.Upper tank and water tank of hindered settling machine. The function of upper tank is to form turbulent zone within it through the action of rising water, so as to make coarse and fine particles or heavy and light particles to be classified. The role of the water tank is that the water with certain pressure and flow is distributed uniformly to the bottom of the hindered settling machine.

2.Feeder of hindered settling machine. The feeder is designed to be cone-shaped and can receive the selected slurry from the desliming bucket and feed the material into the middle of the cylinder of the  hindered settling machine.

3.Executing unit of hindered settling machine. The actuator makes the stem move in a straight line within 20-40mm range.

4.Pressure detector of hindered settling machine. Pressure detector is used to detect the pressure of slurry in turbulent area.

5.Automatic control system of hindered settling machine. In order to ensure the normal operation of the hindered settling machine, a slurry gravity adjustment system is set up to control the bottom valve to carry out normal discharging.

Working principle of hindered settling machine

Hindered settling classifier is a hindered (or disturbed) settler, which forms turbulent flow in a container with rising water. The rising water enters the water tank according to the predetermined velocity and pressure, and the material is input into the equipment by the feeder. With the same particle size particles of higher specific gravity will settle faster. For the particle size of a certain range to remain suspended under the action of rising water flow, this area is called turbulent area. The larger particles or the heavier particles will cross the turbulence zone and settle, while the smaller particles or the lighter particles will not cross the turbulence zone, but float upward and overflow from the overflow weir plates and collect in the overflow groove. The pressure gauge is inserted into the slurry in the turbulent area, showing the slurry pressure. Materials are continuously sorted according to the above process.

Specification of hindered settling machine

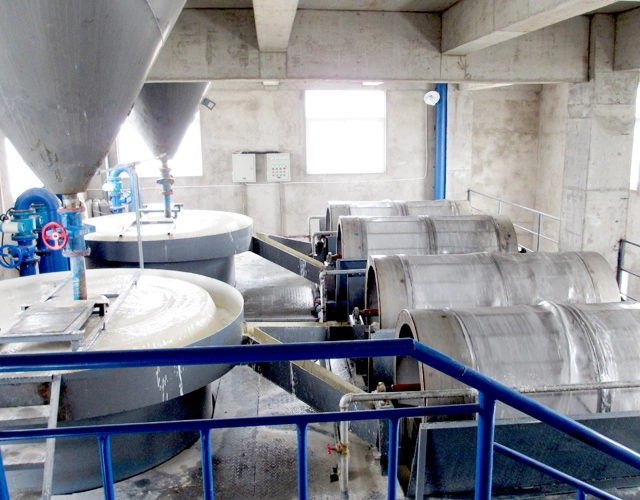

Case 1：Botswana 2sets JSS-2100 Hindered settling machine

These 2 Hindered settling machine used in production of high purity quartz sand, mainly used for the classification of coarse quartz sand. It combined with desliming cone and trommel screen to achieve the ideal classification results.

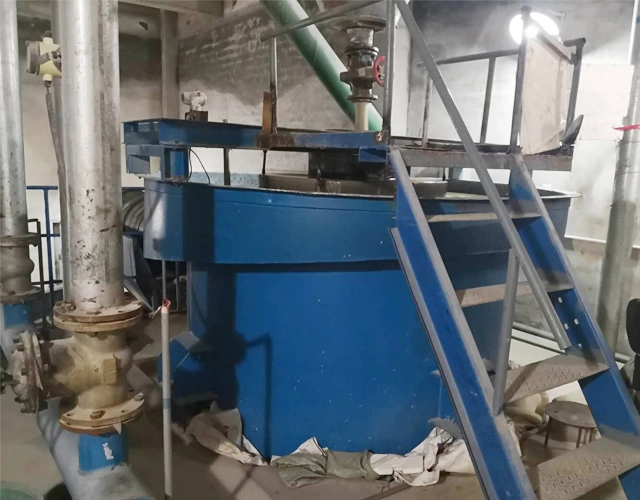

Case 2：Emirates JSS-2400 Hindered settling machine

Through a series of investigation, the customers had great interest to the Hindered settling machine, finally decided to buy a model of JSS - 2400 Hindered settling machine, used in production of quartz sand, the equipment is in good working order, low failure rate, and it is the most cost-effective equipment purchased by customers

The process of High purity quartz sand has high requirements for classifying equipment, and high efficiency equipment can be an important guarantee for the operation of the project. Sinonine not only meets my requirements for high quality equipment, but also meets my requirements for cost performance. The cooperation between Sinonine and me will be maintained for a long time. I currently use the Hindered settling machine and Trommel screen with very stable operation, fully automatic production, and the operation cost is very low. The size range of quartz sand grading can be adjusted, it is a very perfect set of equipment.

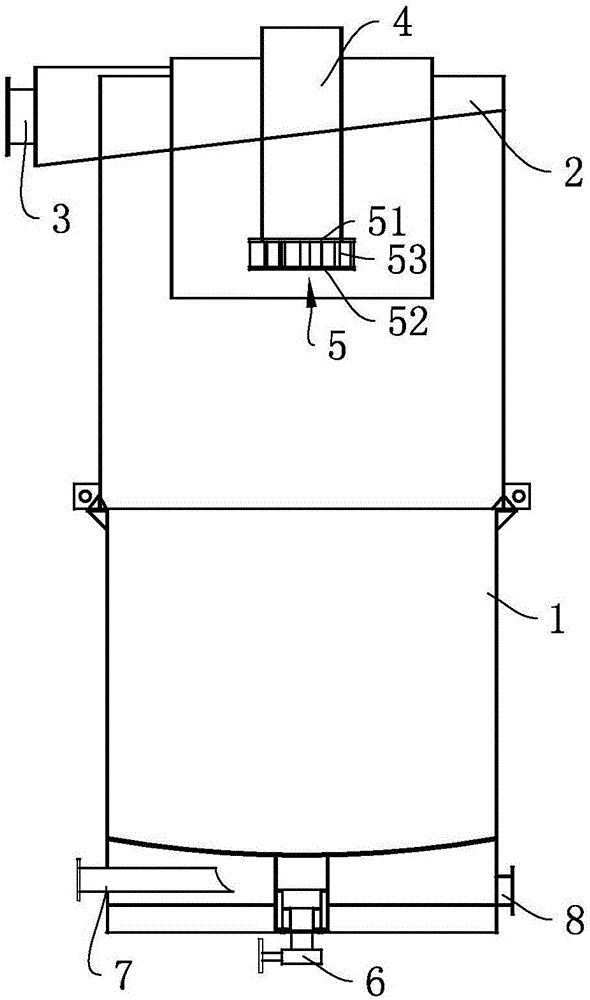

1. Cylinder; 2. Overflow groove; 3. Overflow port; 4. Feed pipe; 5. Jet head; 51. The base plate; 52. The top plate; 53. Stay plate; 6. Discharge port; The first inlet pipe; 8. Second inlet pipe.
