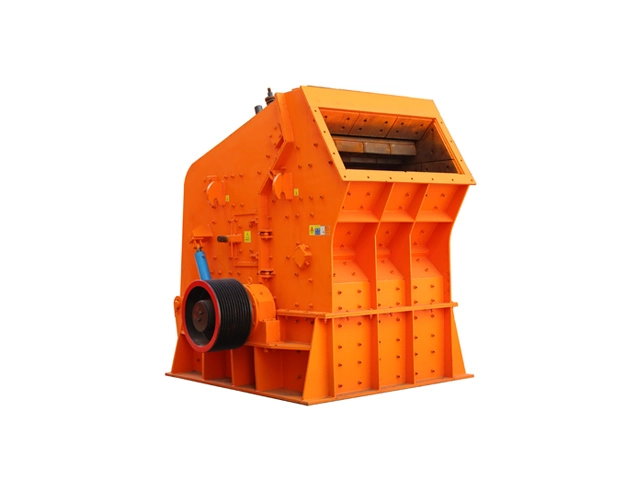

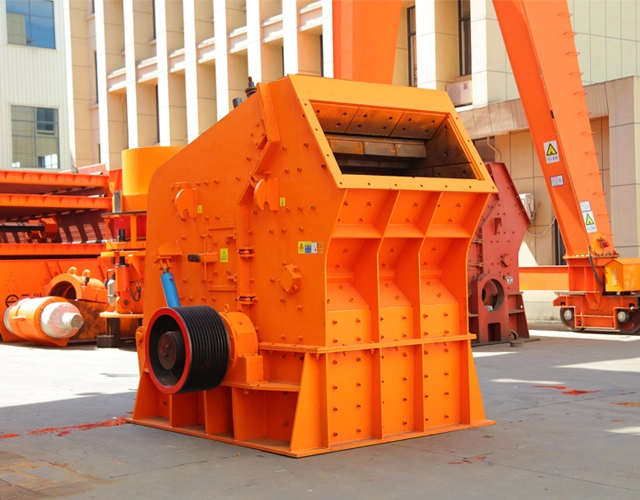

Features of impact crusher
1.The impact crusher has a big feed opening and a high crushing chamber. Materials of high hardness and big size can be crushed by it, and the product is of less powder.

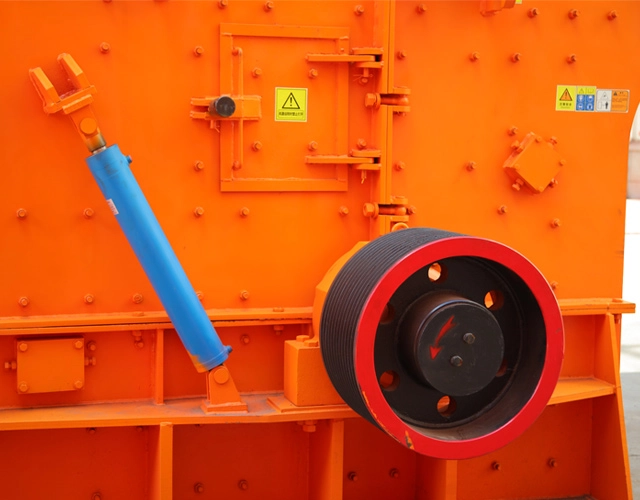

2.The space between the impact plate and the blow bar can be adjusted conveniently. The particle size is controled effectively. The product is of good shape.
3.The impact crusher has a compact structure and can resist strong forces. The totor of impact crusher has a great rotational inertia.
4.The hammer material of impact crusher is high Chrome alloy witch can bear impacts, abrading and can impact with a great force.
5.The no- board connection makes impact crusher easy to repair and maintain.
6.The impact crusher has more crushing functions and is of bigger productivity, less wearing, higher comprehensive benefits.
Working principle of impact crusher

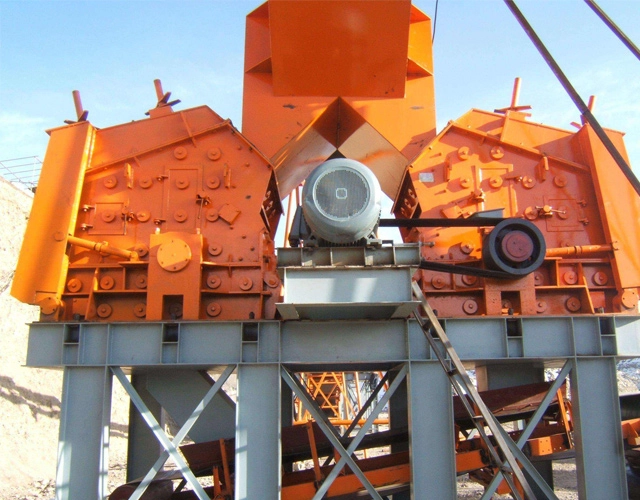

This impact crusher consists of main frame, rotor, front blow bar and back blow bar. Each gyrating cycle is formed by V-belt driving rotor through electronic and materials are crushed by high speed impact of flat hammer on gyrating rotor. After that, the materials are crushed again by throwing impact liner and then crushed again from impact plate to flat hammer. This process works again and again until materials being qualified size.
Specification of impact crusher
Model | Rotor specification (mm) | Max feeding size (mm) | Capacity (t/h) | Power (Kw) | Weight (t) | Overall dimension (L x W x H) (mm) |
PF0807 | Φ850×700 | 250 | 15-30 | 45 | 8.1 | 2210×1490×2670 |
PF1007 | Φ1050×700 | 300 | 25-60 | 45 | 9.5 | 2400×1558×2660 |
PF1010 | Φ1050×1000 | 350 | 50-80 | 75 | 12.2 | 2400×2250×2720 |
PF1210 | Φ1250×1050 | 350 | 70-120 | 110 | 14.1 | 2690×2330×2890 |
PF1214 | Φ1250×1400 | 400 | 110-180 | 132 | 18.6 | 2690×2688×2890 |
PF1315 | Φ1320×1500 | 500 | 160-250 | 200 | 23.4 | 3096×3273×2667 |
PF1320 | Φ1320×2000 | 600 | 200-310 | 315 | 27.5 | 3280×3570×2920 |
