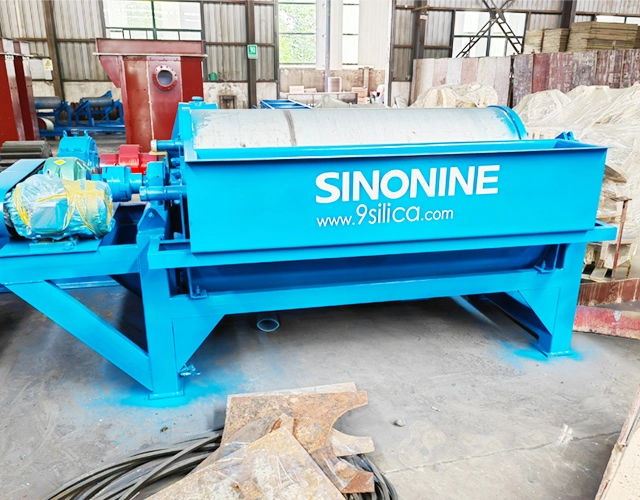

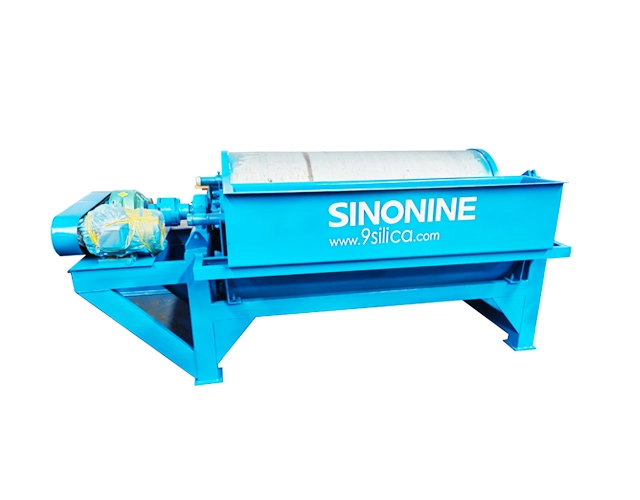

Features of magnetic drum separator
1.The magnetic drum separator adopts Optimized computer design ,rational magnetic circuit.
2.The magnetic drum separator has strong magnetic coercive force and high-remanence permanent magnetic.
3.The magnetic drum separator can keep the magnet performance in a long period and safeguard the long -term interest of the customer.
4. The whole structure of magnetic drum separator is reliable.
Working principle of magnetic drum separator
Slurry enters chute through ore tank of magnetic drum separator, and then gets into separating zone by waterpower. Minerals with strong magnetism are absorbed on the magnetic drum’s surface under the force of magnetic field and get into the ore concentrate outlet along with the rotation of drum. After leaving the magnetic field of magnetic separator, the material flow into ore concentrate box by the action of gravity and flushing water. Gangue and ore with weak magnetism are discharged into a pipe in the opposite direction of drum rotation and discharged out of the magnetic separator.
Specification of magnetic drum separator
Model | Drum size(mm) (Dia.×length) | Drum surface magnetic intensity(mT) | Capacity (t/h) | Power (Kw) | Drum speed (r/min) | Weight (kg) | ||
Average value | Scavenging area | medium magnetic field | ||||||
CTB44 | Φ400×400 | 130 | 180 | 250-400 | 1-2 | 1.1 | 45 | 350 |
CTB46 | Φ400×600 | 130 | 180 | 250-400 | 2-3 | 1.1 | 45 | 600 |
CTB63 | Φ600×300 | 140 | 180 | 250-400 | 3-5 | 1.1 | 40 | 600 |
CTB66 | Φ600×600 | 140 | 180 | 250-400 | 5-10 | 1.1 | 40 | 750 |
CTB69 | Φ600×900 | 180 | 180 | 250-400 | 8-15 | 1.1 | 40 | 910 |
CTB612 | Φ600×1200 | 140 | 180 | 250-400 | 10-20 | 2.2 | 40 | 1050 |
CTB618 | Φ600×1800 | 140 | 180 | 250-400 | 15-30 | 2.2 | 40 | 1340 |
CTB712 | Φ750×1200 | 160 | 200 | 300-500 | 15-30 | 3 | 35 | 1500 |
CTB718 | Φ750×1800 | 160 | 200 | 300-500 | 20-45 | 3 | 35 | 2100 |
CTB918 | Φ900×1800 | 170 | 200 | 300-600 | 25-55 | 4 | 28 | 2900 |
CTB924 | Φ900×2400 | 170 | 200 | 300-700 | 35-70 | 4 | 28 | 3600 |
CTB1018 | Φ1050×1800 | 170 | 220 | 300-700 | 40-75 | 5.5 | 22 | 4000 |
CTB1021 | Φ1050×2100 | 180 | 220 | 300-700 | 50-100 | 5.5 | 22 | 4500 |
CTB1024 | Φ1050×2400 | 180 | 220 | 300-700 | 60-120 | 5.5 | 22 | 5000 |
CTB1030 | Φ1050×3000 | 180 | 220 | 300-700 | 70-150 | 7.5 | 22 | 6300 |
CTB1218 | Φ1200×1800 | 180 | 220 | 300-700 | 60-110 | 5.5 | 19 | 4900 |
CTB1224 | Φ1200×2400 | 180 | 220 | 300-700 | 70-130 | 7.5 | 19 | 5900 |
CTB1230 | Φ1200×3000 | 180 | 220 | 300-700 | 80-160 | 7.5 | 19 | 7200 |
CTB1530 | Φ1500×3000 | 180 | 220 | 300-700 | 100-180 | 11 | 14 | 8900 |
CTB1540 | Φ1500×4000 | 180 | 220 | 300-700 | 115-220 | 11 | 14 | 9900 |

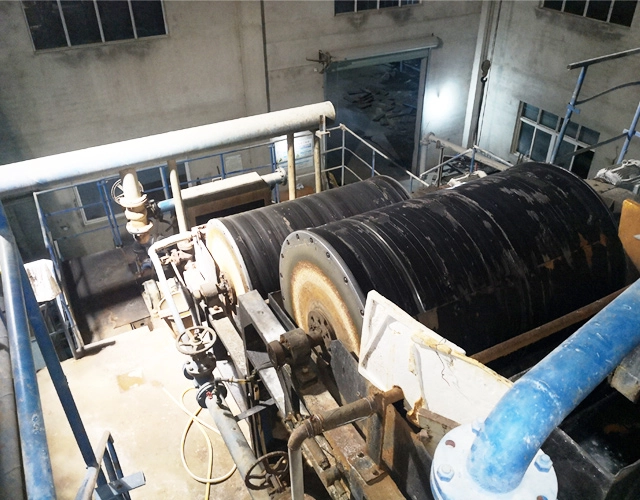

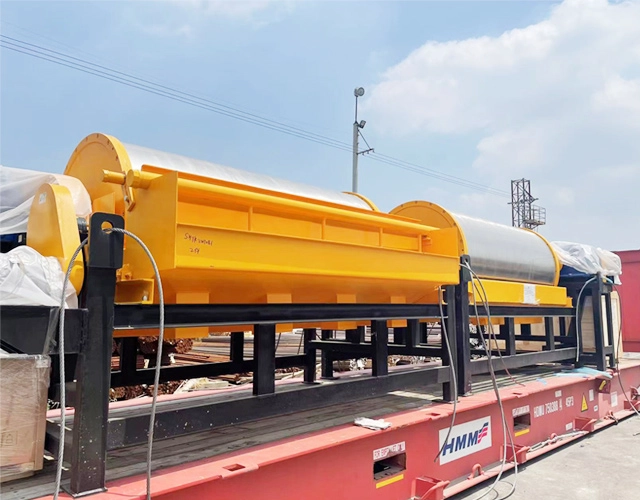

China Anhui 2sets CTB1018 drum magnetic separator
The two drums magnetic separator are installed in a 30tph quartz sand production line for magnetic separation. The first stage is strong-intensity magnetic separation and the second stage is weak magnetic separation.they are used in combination to thoroughly remove iron from the product.

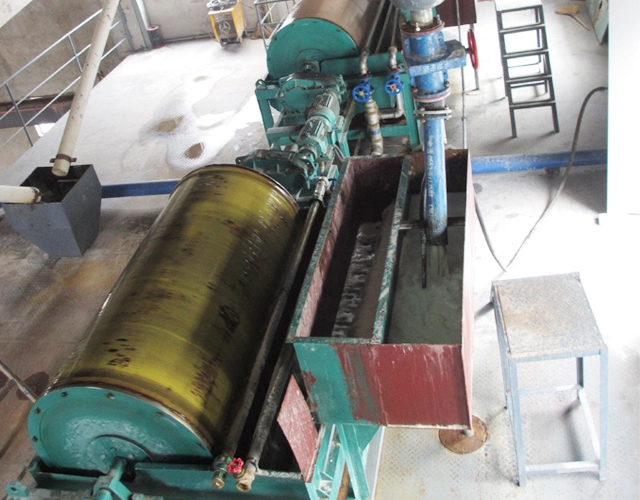

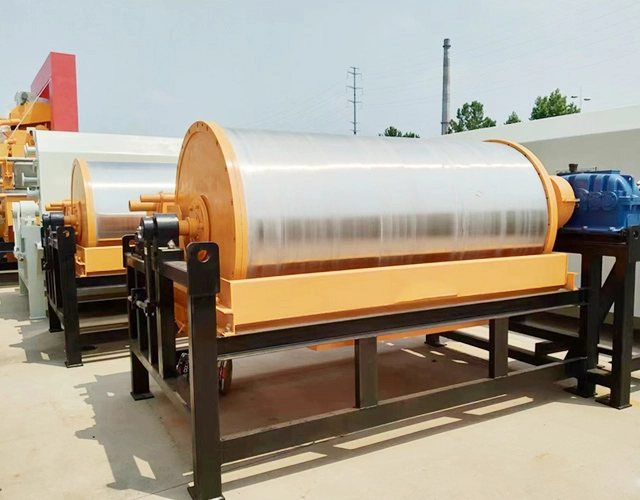

Australia CTB1024 drum magnetic separator
This equipment is used for removing iron in quartz sand production line. It is combined with high gradient magnetic separator and plate magnetic separator to remove residual iron in quartz sand, and the removal effect is very ideal.
Drum magnetic separator is widely used. Sinonine recommended to me this equipment that uses a weak magnetic field to further remove the magnetic substance in the quartz sand. I choose to cooperate with Sinonine is based on the trust of its technology, coupled with good after-sales service, to provide good guarantee for the whole project. By now this magnetic separation equipment has been running for many years with low failure rate. it is definitely a very stable equipment, which plays an irreplaceable role in my production line running.
