Features of rod mill
1.The steel rod takes regular movement in rod mill.
2.The rod mill is convenient to install and maintain.
3.The rod mill has rapidly discharging.
4.The rod mill can obtain even particle size of product, little over grinding.
Working principle of rod mill

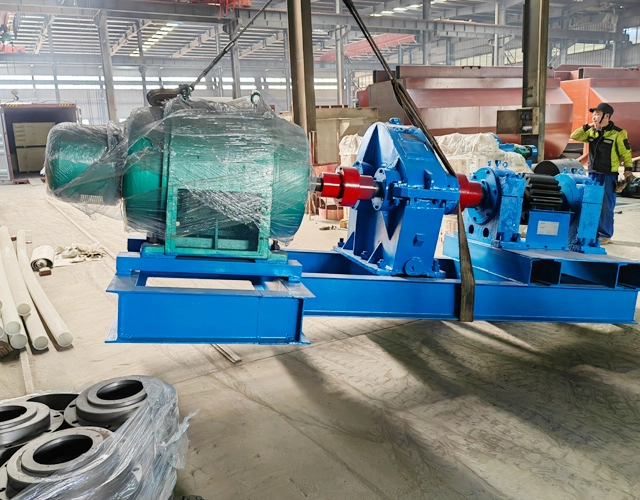

The rod mill is driven by motor with speed reducer and peripheral large gear, or low speed synchronous motor with peripheral large gear. The grinding medium-steel rod is put into the cylinder of rod mill which is lifted, and then fall under the action of the centrifugal force and friction force. The materials entering into cylinder from the feeding inlet of rod mill are grinded by movable grinding medium and discharged out by overflow and continuously feeding.
Specification of rod mill
Model | Cylinder | Cylinder | Power | Max. Rod Load (t) | Capacity (t/h) | Effective | Weight |
MBY0918 | 900 | 1800 | 22 | 1.7 | 0.62~3.2 | 0.9 | .7 |
MBY0924 | 900 | 2400 | 30 | 2.1 | 0.81~4.3 | 1.2 | 5.9 |
MBY1224 | 1200 | 2400 | 45 | 2.3 | 0.4~4.9 | 2.28 | 12.3 |
MBY 1530 | 1500 | 3000 | 95 | 5 | 0.4~4.9 | 5 | 20 |
MBYG1530 | 1500 | 3000 | 80 | 5 | 2.4~7.5 | 5 | 21 |
MBYG2130 | 2100 | 3000 | 180 | 9 | 14~35 | 9 | 42 |
MBYG2136 | 2100 | 3600 | 210 | 11 | 43~61 | 10.8 | 46 |
MBYG2430 | 2400 | 3000 | 280 | 12 | 45~65 | 11.5 | 56 |
MBYG2732 | 2700 | 3200 | 320 | 14 | 31~76 | 15.7 | 83 |
MBYG2736 | 2700 | 3600 | 380 | 18 | 32~86 | 17.7 | 91 |
MBY2740 | 2700 | 4000 | 400 | 20.5 | 43~110 | 20.4 | 75 |
MBY3040 | 3000 | 4000 | 570 | 28 | 54~135 | 26 | 93 |
MBY3245 | 3200 | 4500 | 800 | 33 | 64~180 | 31 | 113 |
MBY3645 | 3600 | 4500 | 1250 | 42 | 80~230 | 41.8 | 139 |
MBY3654 | 3600 | 5400 | 1600 | 47 | 100~250 | 49.7 | 152 |
Case 1: Ecuador MBYG2430 Rod mill
The customer purchased the MBYG2430 Rod mill produced by our company for the grinding operation of quartz sand production line. The equipment has been operating normally for 10 years and is still operating 24 hours a day.
Case 2: Uganda MBYG2130 Rod mill
The rod mill is used in the wet type quartz sand production line to produce high purity quartz sand. It is mainly used in grinding operation after quartz ore crushing. The equipment has been running normally for 4 years.
I am very satisfied with the equipment provided by Sinonine, and I am glad to find a professional company like Sinonine to cooperate with, which can provide not only equipment with high cost performance, but also perfect technical support, which can solve many of my problems. The rod mill I bought has been running for more than 10 years. So far, it is the most efficient equipment in this region. This series of equipment has been continuously working smoothly, which ensures the normal operation of my production line. Sinonine has a strong technical force and an efficient technical team. I believe our cooperation will get better and better.
