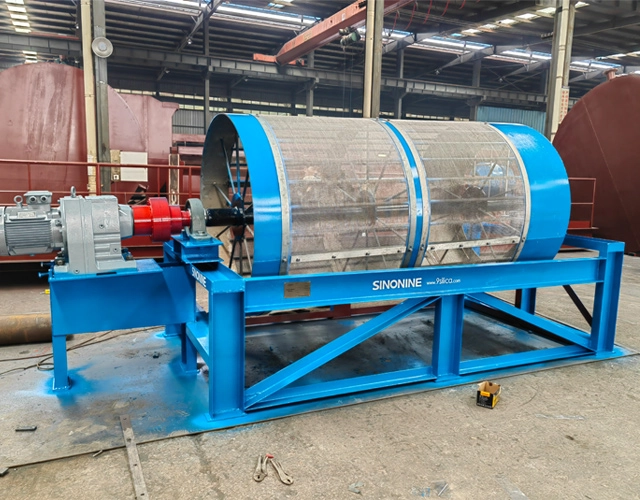

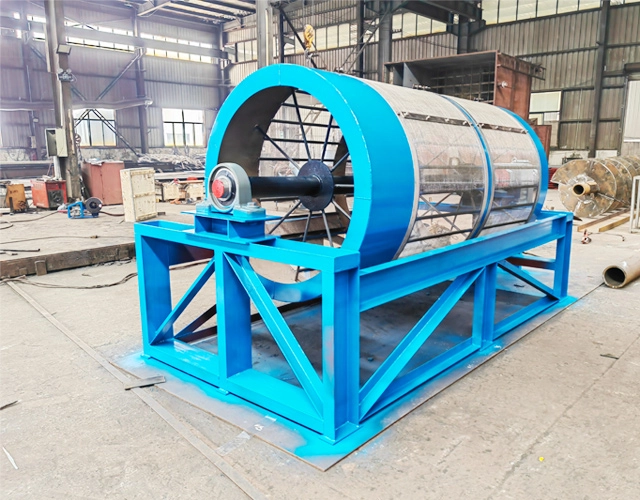

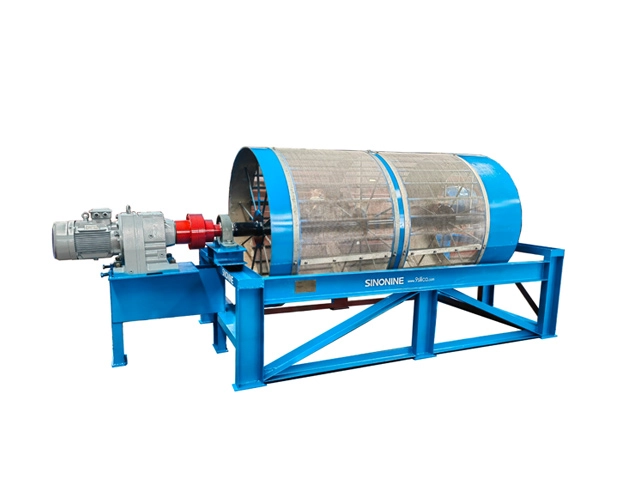

Product Introduction
The rotary drum screen is widely recognized as a versatile trommel screen. It is essential classifying equipment engineered for the precise separation of medium and fine materials. Our rotary drum screen effectively controls material particle size, ensuring optimal downstream processing. In typical silica sand facilities, this equipment frequently integrates with a hydraulic classifier to manage large particle materials. The robust design guarantees smooth operation even when handling materials with high viscosity and humidity.
Specifications Of Rotary Drum Screen
Model | Capacity (m3/h) | Trommel diameter (mm) | Trommel length (mm) | Power (kw) |
GTS06 | 5-10 | Φ600 | 1.2m-2.8m | 0.75 |
GTS08 | 8-15 | Φ800 | 1.5m-2.8m | 1.5 |
GTS10 | 15-30 | Φ1000 | 1.5m-3.0m | 2.2 |
GTS12 | 20-50 | Φ1200 | 1.5m-3.5m | 3 |
GTS15 | 40-80 | Φ1500 | 1.5m-4.2m | 5.5 |
GTS18 | 80-150 | Φ1800 | 1.5m-4.5m | 7.5 |
GTS20 | 130-200 | Φ2000 | 1.5m-5.5m | 11 |
Features Of Rotary Drum Screen
Low Energy Consumption And Self Cleaning
Our rotary drum screen operates with minimal power requirements, significantly reducing overall energy consumption for your processing facility. The equipment integrates a specialized self-cleaning device that effectively prevents the screen holes from becoming blocked during operation. This crucial feature ensures continuous, uninterrupted material separation, maximizing your processing output over long periods. A carefully engineered factory solution like this provides stable performance while minimizing routine operational overhead.
Compact Design And High Efficiency
Operating a modern processing plant requires maximizing available space without sacrificing output capacity. Our trommel screen features a small occupation space, allowing for flexible integration into existing facility layouts. Despite the compact footprint, the equipment delivers high screening efficiency and a consistently large output. Low investment cost combined with reliable performance makes this equipment a valuable addition to your industrial material classification processes.
Simple Installation And Maintenance Layout
Streamlined operational processes are vital for maintaining productivity and reducing expensive downtime. Our classifying equipment boasts a simple process layout, which translates to effortless installation and straightforward daily maintenance. The central screen incorporates highly wear-resistant materials, resulting in a remarkably long service life under heavy usage. When replacement is eventually required, the convenient design allows your technical team to complete the task quickly and efficiently.
Use Cases Of Rotary Drum Screen
Silica Sand Production Line Integration

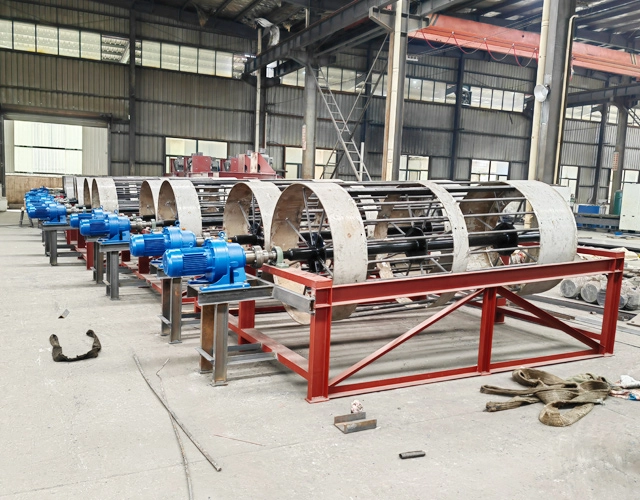

Our rotary drum screen is highly adaptable and frequently deployed in demanding environments like high purity quartz sand production. For example, multiple units of our trommel screens are currently operating successfully in Botswana for classifying coarse quartz sand. When combined with a desliming cone and hindered settling classifier, the system achieves remarkable classification results. The entire setup delivers fully automatic production, adjustable grading sizes, and classification efficiency exceeding ninety percent.
Why Choose Us
Comprehensive EPC Project Services
We operate as a high-tech enterprise dedicated to providing complete turnkey project services for quartz processing plants globally. Our experienced technical team possesses deep practical knowledge derived directly from active silica sand production environments. We maintain our own equipment manufacturing facilities, ensuring strict quality control over every unit produced. Clients benefit from our around-the-clock technical support, rapid response times, and comprehensive on-site installation guidance.
FAQ
What materials can the rotary drum screen handle effectively?
Our equipment demonstrates strong adaptability to various challenging substances. It easily screens materials exhibiting high viscosity, elevated humidity, and other complex physical properties.
How is the drum screen powered and driven?

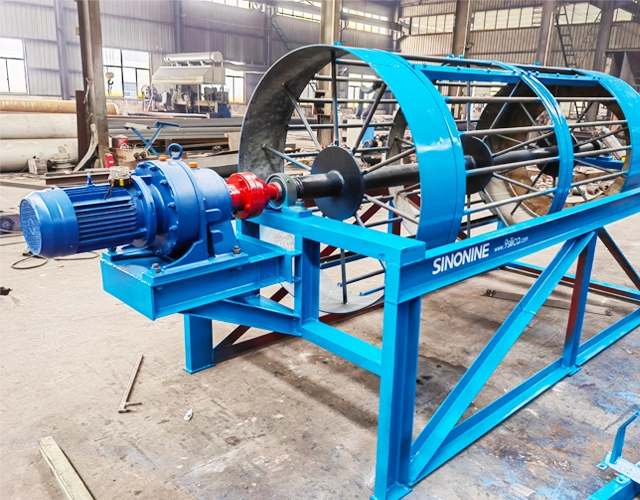

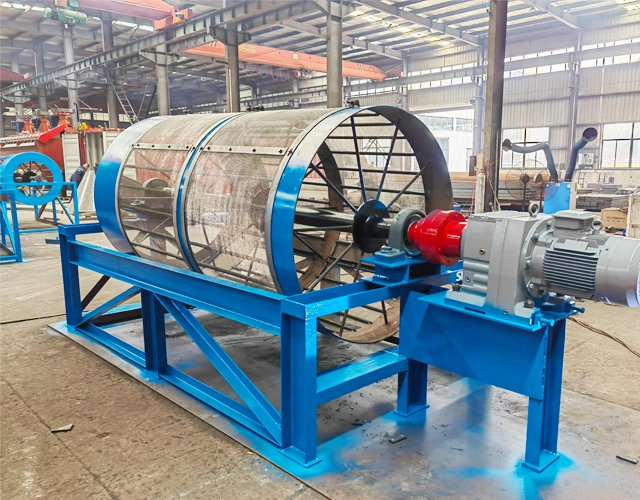

The motor connects directly to the drum device using a reliable reducer and coupling mechanism. This setup drives the trommel to rotate smoothly around its central axis.
What happens when materials enter the rotating drum?
Due to the specific equipment tilt and rotation, materials continuously turn over and roll along the screen surface. This continuous tumbling action reliably achieves precise particle size classification for your facility.
Does the company offer custom solutions for specific projects?
We provide tailored engineering design, technical consultation, and highly cost-effective equipment configurations. Our team works closely with your facility to meet specific output and purity requirements.
