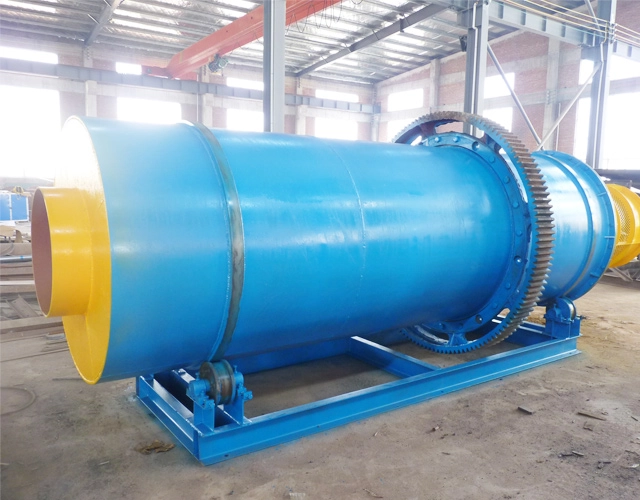

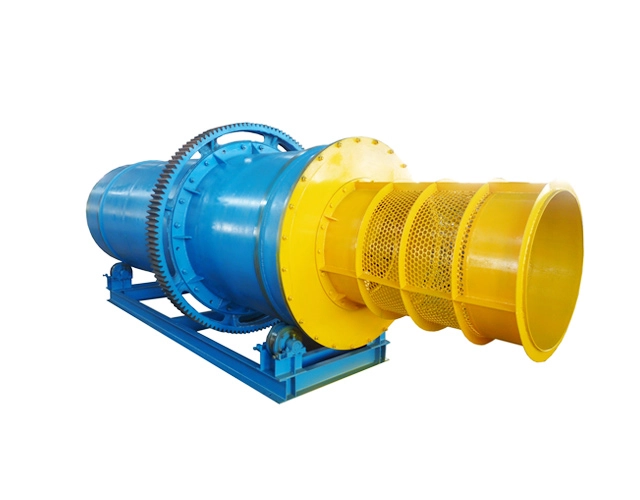

Working principle and structure of rotary scrubber

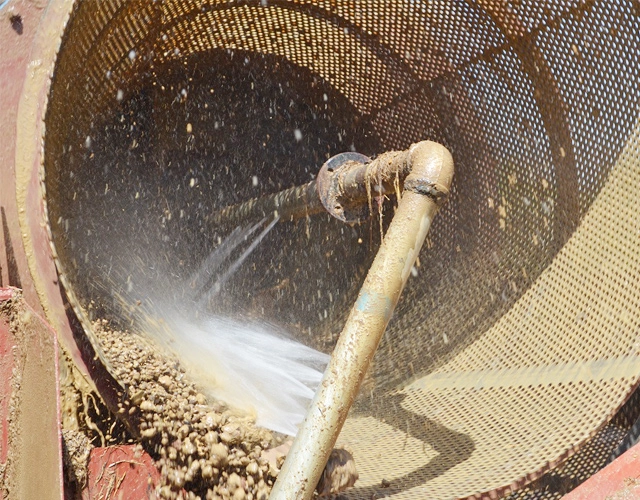

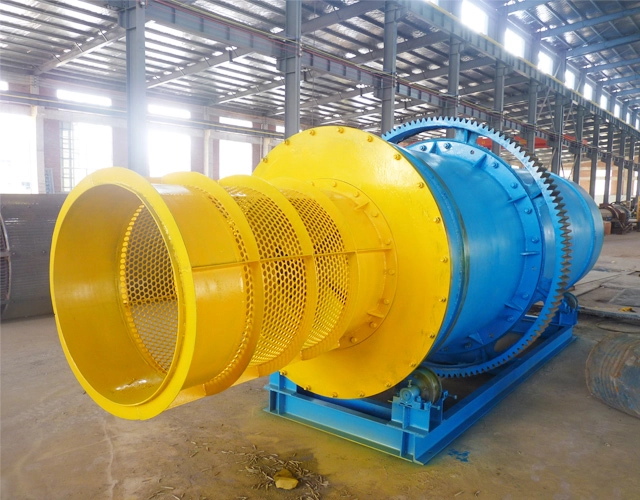

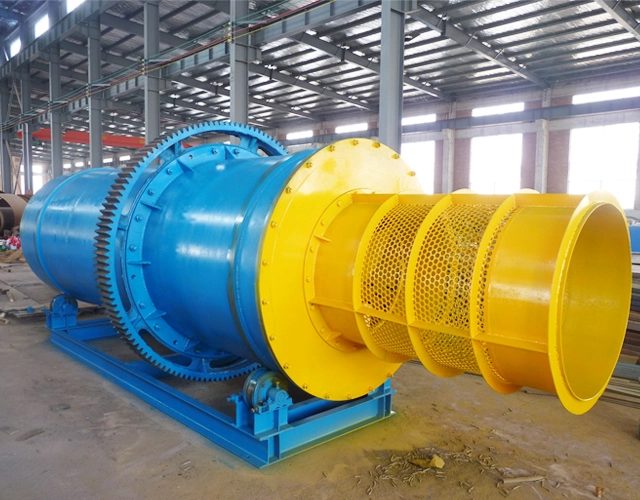

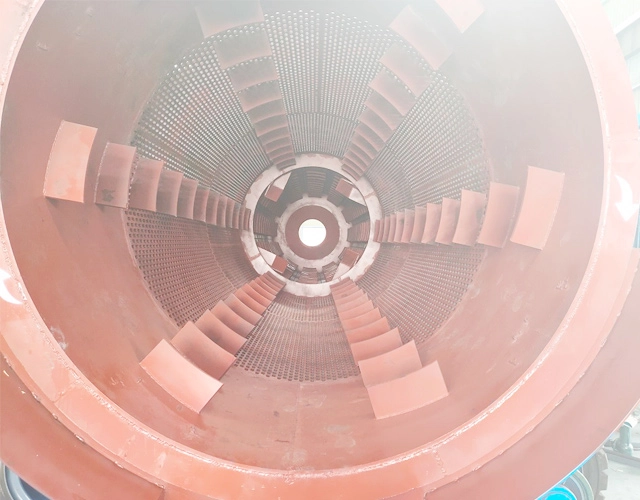

The rotary scrubber is installed horizontally or inclined 3-6 degree. The material is slurried and scrubbed in the cylinder so that the ore and mud are completely separated. polyurethane liner is installed in the cylinder to protect the cylinder from corrosion and abrasion. After full cleaning, the ore or stone is discharged through spiral discharge liners.
Features of rotary scrubber
Large processing capacity;
Easy operation;
Large particle size of ore washing;
Suitable for all kinds of ore and stones.
Specification of drum rotary scrubber
Model | Drum size (DxL) (mm) | Capacity (t/h) | Input Size (mm) | Power (kw) | Rotary speed (r/min) | Weight (t) |
YTX-1348 | Φ1300×4800 | 50-100 | <200 | 22 | 15-25 | 23.3 |
YTX-1754 | Φ1700×5400 | 100-250 | <200 | 37 | 10-20 | 27.1 |
YTX-1760 | Φ1700×6000 | 100-300 | <200 | 45 | 10-20 | 31.2 |
YTX-1766 | Φ1700×6600 | 100-300 | <200 | 37 | 10-20 | 29.6 |
YTX-2442 | Φ2400×4200 | 100-400 | <200 | 45 | 7-13 | 42 |
YTX-2454 | Φ2400×5400 | 100-500 | <200 | 55 | 7-13 | 43 |
YTX-2460 | Φ2400×6000 | 100-500 | <200 | 55 | 7-13 | 50 |
YTX-2472 | Φ2400×7200 | 100-500 | <200 | 55 | 7-13 | 56 |
