There are three commonly used silica sand dryers, namely, triple pass cylinder dryer, rotary drum dryer and fluidized bed dryer. The triple pass cylinder dryer is mainly for the drying of coarser silica sand, is an efficient and energy-saving dryer, with compact structure, small footprint, low cost and other advantages. Rotary drum dryer can adapt to higher temperature drying, silica sand can stay in the dryer for a longer time, which can achieve the dual role of drying and removing organic impurities, so it is suitable for high purity quartz sand drying. Fluidized bed dryer is an indirect heating dryer, which uses hot steam to heat silica sand to avoid direct contact between fuel and silica sand, so the possible contamination of silica sand is avoided. According to different types of silica sand, the appropriate silica sand dryer can be chose, so that the best technical and economic indicators of silica sand drying can be obtained.

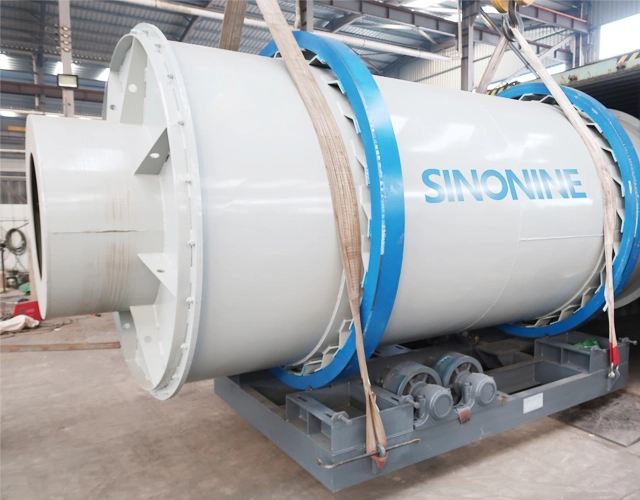

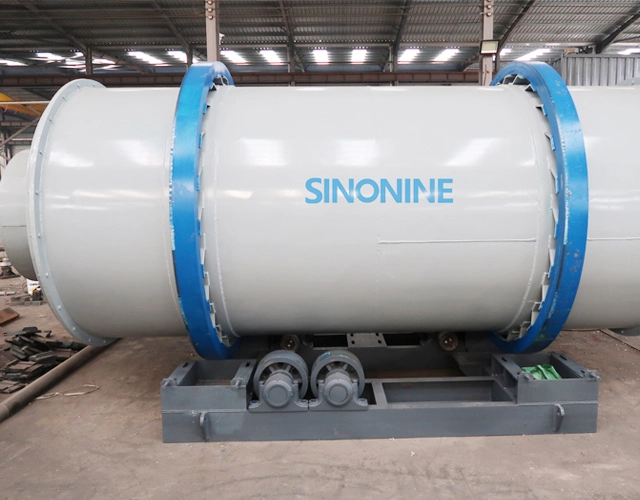

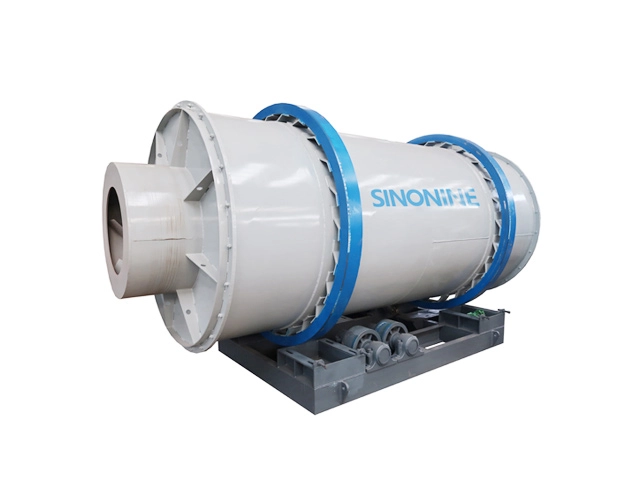

Specification of triple pass cylinder dryer
Model | Cylinder dia. (mm) | Cylinder length (mm) | Rotating speed (r/min) | Volume (m³) | Drying capacity (t/h) | Power (kw) |
CRH1520 | 1500 | 2000 | 3-10 | 3.5 | 3-5 | 4 |
CRH1530 | 1500 | 3000 | 3-10 | 5.3 | 5-8 | 5.5 |
CRH1840 | 1800 | 4000 | 3-10 | 10.2 | 10-15 | 7.5 |
CRH1850 | 1800 | 5000 | 3-10 | 12.7 | 15-20 | 5.5*2 |
CRH2245 | 2200 | 4500 | 3-10 | 17 | 20-25 | 7.5*2 |
CRH2658 | 2600 | 5800 | 3-10 | 31 | 25-35 | 5.5*4 |
CRH3070 | 3000 | 7000 | 3-10 | 49 | 50-60 | 7.5*4 |

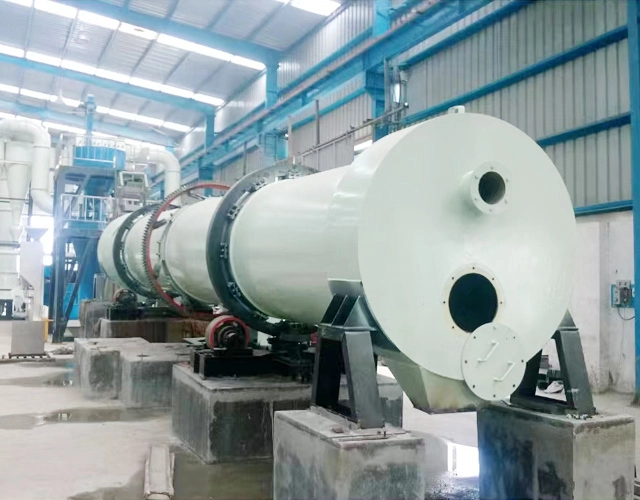

Specification of rotary drum dryer
Model | Drum Diameter and Length e(m) | Drun Volume (m3) | Drum Inclination (%) | Max. IAT (℃) | Capacity (t/h) | Power (kw) | Weight (t) |
SZT1280 | Φ1.2x8 | 9.0 | 3-5 | 700-800 | 1.9-2.4 | 7.5 | 9 |
SZT1210 | Φ1.2x10 | 11.3 | 3-5 | 700-800 | 2.4-3.0 | 7.5 | 11 |
SZT1512 | Φ1.5x12 | 21.2 | 3-5 | 700-800 | 4.5-5.7 | 15 | 18.5 |
SZT1514 | Φ1.5x14 | 24.7 | 3-5 | 700-800 | 5.3-6.6 | 15 | 19.7 |
SZT1812 | Φ1.8x12 | 30.5 | 3-5 | 700-800 | 6.5-8.1 | 18.5 | 21.5 |
SZT1814 | Φ1.8x14 | 35.6 | 3-5 | 700-800 | 7.6-9.5 | 18.5 | 23 |
SZT2212 | Φ2.2x12 | 45.6 | 3-5 | 700-800 | 9.7-12.2 | 22 | 33.5 |
SZT2216 | Φ2.2x16 | 60.8 | 3-5 | 700-800 | 13.0-16.2 | 22 | 38 |
SZT2414 | Φ2.4x14 | 63.3 | 3-5 | 700-800 | 13.5-16.9 | 37 | 45 |
SZT2418 | Φ2.4x18 | 81.4 | 3-5 | 700-800 | 17.4-21.7 | 37 | 49 |
SZT2420 | Φ2.4x20 | 90.4 | 3-5 | 700-800 | 19.3-24.1 | 45 | 54 |
SZT2422 | Φ2.4x22 | 99.5 | 3-5 | 700-800 | 21.2-26.5 | 45 | 58 |
SZT2624 | Φ2.6x24 | 127.4 | 3-5 | 700-800 | 27.4-34 | 55 | 73 |
SZT3020 | Φ30x20 | 141.3 | 3-5 | 700-800 | 30.1-37.7 | 75 | 85 |
SZT3025 | Φ30x25 | 176.6 | 3-5 | 700-800 | 37.7-47.1 | 75 | 95 |
SZT3225 | Φ32x25 | 201 | 3-5 | 700-800 | 42.9-53.6 | 90 | 110 |
Specification of vibrating fluidized bed dryer
Model | Fluidized Bed Area (m2) | Inlet Air Temperature (ºC) | Outlet Air Temperature (ºC) | Evaporation Capacity (kg/h) | Power (kw) |
ZLG3×0.3 | 0.9 | 70 to 140 | 40 to 70 | 20 to 35 | 0.75 × 2 |
ZLG4.5×0.3 | 1.35 | 70 to 140 | 40 to 70 | 35 to 50 | 0.75 × 2 |
ZLG4.5×0.45 | 0.025 | 70 to 140 | 40 to 70 | 50 to 70 | 1.1 × 2 |
ZLG4.5×0.60 | 0.7 | 70 to 140 | 40 to 70 | 70 to 90 | 1.1 × 2 |
ZLG6×0.45 | 0.7 | 70 to 140 | 40 to 70 | 80 to 100 | 1.1 × 2 |
ZLG6×0.6 | 3.6 | 70 to 140 | 40 to 70 | 100 to 130 | 1.5 × 2 |
ZLG6×0.75 | 4.5 | 70 to 140 | 40 to 70 | 120 to 170 | 1.5 × 2 |
ZLG6-0.9 | 5.4 | 70 to 140 | 40 to 70 | 140 to 170 | 2.2 × 2 |
ZLG7.5×0.6 | 4.5 | 70 to 140 | 40 to 70 | 130 to 150 | 2.2 × 2 |
ZLG7.5×0.75 | 5.625 | 70 to 140 | 40 to 70 | 150 to 180 | 3.0 × 2 |
ZLG7.5×0.9 | 6.75 | 70 to 140 | 40 to 70 | 160 to 210 | 3.0 × 2 |
ZLG7.5×1.2 | 9.0 | 70 to 140 | 40 to 70 | 200 to 280 | 3.7 × 2 |
ZLG7.5×1.5 | 11.25 | 70 to 140 | 40 to 70 | 230 to 330 | 3.7 × 2 |
ZLG8×1.8 | 14.4 | 70 to 140 | 40 to 70 | 290 to 420 | 5.5 × 2 |
