Product Introduction

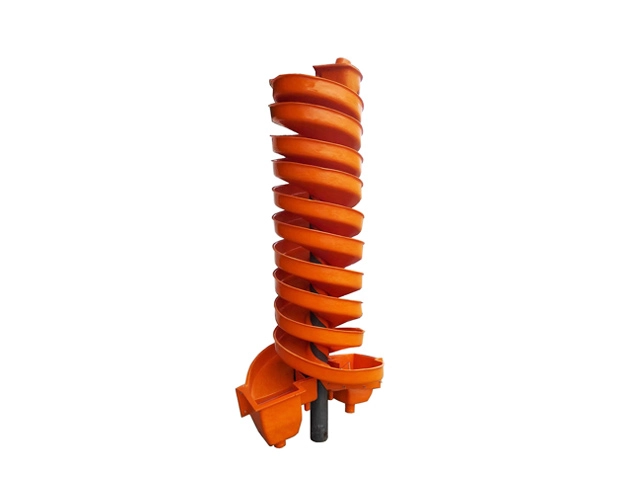

Our Spiral Chute is an advanced piece of gravity separation equipment engineered to process various mineral particles efficiently. It is primarily utilized to extract heavy minerals like TiO2 and Cr2O3 from quartz sand. This machinery relies on the density differences of materials to achieve precise sorting results. Our Spiral Chute provides a reliable processing method for industrial applications requiring rigorous material purification. Plant operators rely on this equipment to streamline their production lines and enhance overall output quality.
Specifications Of Spiral Chute
Model | Diameter (mm) | Screw Pitch (mm) | Screw Numbers | Feed Density (%) | Capacity (m3/h) | Feed Size (mm) | Dimension (LxWxH)(mm) |
SL600 | 600 | 390 | 2-3 | 15-40 | 10-15 | 0.04-1.5 | Ø700×2550 |
SL900 | 900 | 540 | 2-3 | 15-40 | 15-22 | 0.04-1.5 | Ø1030×3700 |
SL1200 | 1200 | 605 | 2-4 | 15-40 | 30-60 | 0.04-1.5 | Ø1250×4000 |
Features Of Spiral Chute
Stable Processing Performance
The structural design of our Spiral Chute ensures highly stable operations during continuous mineral processing tasks. Operators benefit from the easy control mechanisms that require minimal manual intervention during regular shifts. This equipment supports an exceptionally wide range of concentration levels without compromising the final separation quality. The consistent performance helps maintain steady plant throughput and reduces unexpected downtime significantly. Such reliability makes it an indispensable asset for large-scale mining operations and specialized purification facilities worldwide.
Cost-Effective Installation And Operation
Implementing our Spiral Chute into existing processing lines features the advantage of simple installation procedures. The intuitive design facilitates convenient operation and drastically lowers the learning curve for plant personnel. By requiring less initial investment compared to complex mechanical alternatives, this equipment accelerates the overall return on investment. The absence of intricate moving parts also minimizes ongoing maintenance expenses. Factory managers appreciate the balance of high operational efficiency and reduced long-term running costs.
Use cases Of Spiral Chute
Quartz Sand Purification Projects
Our Spiral Chute excels in specialized projects focused on the rigorous purification of quartz sand resources. It effectively isolates and removes unwanted materials to elevate the purity of the final sand product. This application is crucial for supplying high-quality raw materials to industries demanding strict chemical compositions. The equipment consistently delivers reliable extraction rates for challenging elements present in the raw sand. Project turnkey services providers frequently integrate this unit to guarantee superior project outcomes.
Diverse Ore Sorting Applications
Beyond sand treatment, our Spiral Chute is highly suitable for sorting a wide variety of valuable ores. Typical applications include the processing of titanium, zirconium, tungsten, tin, gold, and silver deposits. It also performs exceptionally well when separating copper, iron, lead zinc, and barite resources. The equipment adapts seamlessly to different mineral characteristics and density profiles across various mine sites. This versatility allows processing plants to maximize resource recovery across multiple commodity sectors efficiently.
Why Choose Us
Reliable Equipment Manufacturer
SINONINE operates as a recognized high-tech enterprise and a leading mining equipment manufacturer originating from China. We specialize in providing comprehensive project turnkey services for sand operations and other mineral processing facilities. Our products are distributed and trusted by industrial clients all over the world. By choosing us as your factory partner, you gain access to robust engineering expertise and dedicated technical support. We look forward to establishing long-term strategic cooperation with your esteemed organization.
FAQ
What materials can this gravity separation equipment process?
It is suitable for removing dense elements from sand and sorting various ores including titanium, gold, and iron.
How does the sorting mechanism divide the mineral particles?
The continuous swirling flow separates particles by density into three distinct zones: concentrate, middling, and tailings.
Is the installation process complicated for a new facility?
No, our Spiral Chute features simple installation requirements and convenient operation to ensure quick integration into your plant.
Do you provide custom solutions or turnkey services?
Yes, we are a professional supplier offering project turnkey services tailored to your specific mineral processing requirements.
